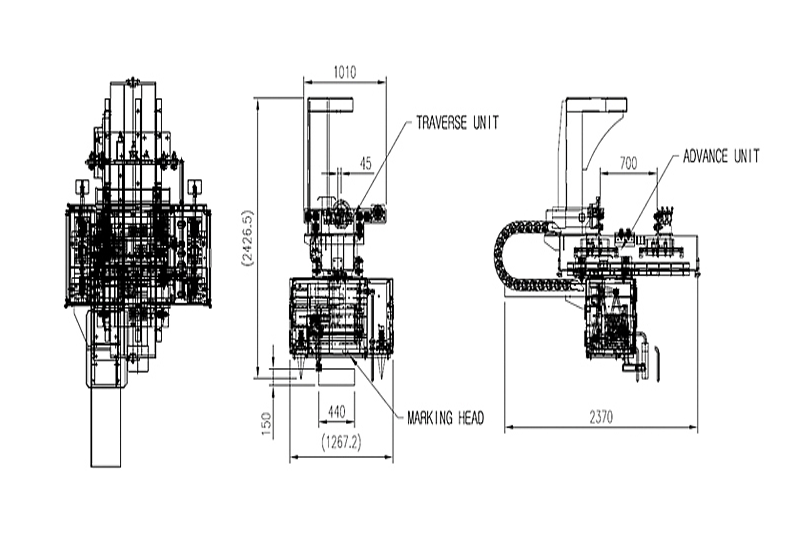

◼︎ 품명 : MARKING MOVING & HEAD UNIT
◼︎ Model : SW-IKS-PMK-MHA-A01
◼︎ SPEC
– TRAVERSE UNIT
Max Speed 238mm/sec
V135-0.75Kw-i = 1/30 – 3⌀-440V-B
ENCODER CA-424-EM131-10600
– ADVANCE UNIT
Stroke 600mm
Max Speed 290mm/sec
V105-0.4Kw-i = 1/30 – 3⌀-440V-B
CableveyorCDM100-W200-R250-170LINKS
– MARKING HEAD

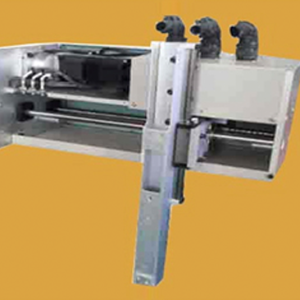

X – Y STAGE X440mm Y150mm
Front Detector
Burr Detector
Marking Nozzle
Descale Nozzle
Water Jacket
– for primary marker
